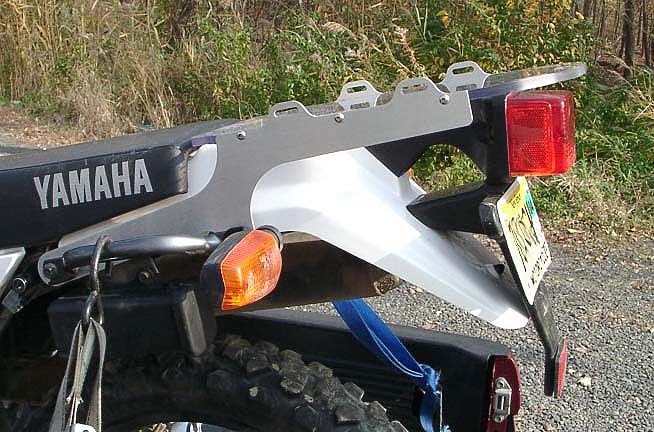

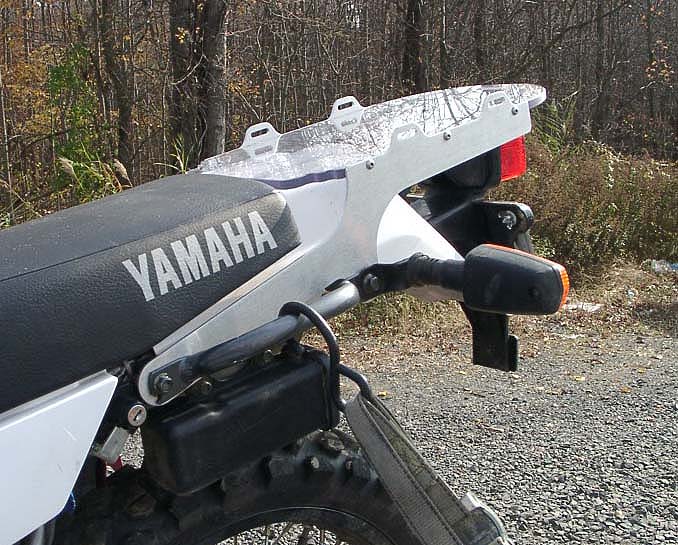

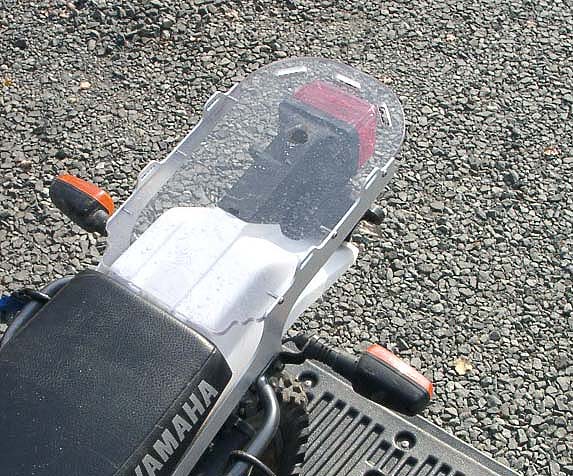

| The LOAD LORD is an attractive solution to a rear fender luggage rack specifically for the Yamaha XT225 Serow bikes. The clear polycarbonate load deck minimizes interference with the stock look of the Serow while providing 8-7/8" x 15-1/2" of flat mounting space. By using industrial grade polycarbonate (LEXAN), stainless steel and aluminum the LOAD LORD is impervious to the deteriorating effects of constant water and punishing riding. Polycarbonate is a high impact plastic that is just about impossible to break and leaving materials natural means there are no finishes to discolor, crack or chip. This means the LOAD LOAD stays looking nice ride after ride and power wash after power wash. A solid water proof deck helps prevent mud and water from splashing up on the underside of the pack out load. Seven strategically located cinch holes make for plenty of places to tie down a variety of loads or tank luggage bags. Shock cords can also be used if required. The deck extends out over the tail light lens which helps prevent lens breakage when you backup into a tree, rock or lay the bike down. Both the aluminum and polycarbonate deck may be easily custom drilled to add a variety of mounting points, holes or brackets to your liking. The LOAD LORD installs under the stock handles in minutes and doesn't require any holes to be drilled in the bike. In short, this rack is designed to go off-road under the toughest of conditions and provide a strong support for packing out important supplies. At 2.8 Lbs it will be your light weight companion during off-road adventures. The long deck means the load (or bag) may be attached far enough back to provide off-road riders plenty of room to slide back during steep down hill runs. Street riders too will find this a useful accessory that just makes riding more fun. So summon the "Lord" and make the load your friend. |
|
LOAD LORD Model LL100 Spec
Table
|
|
| Weight | 2.8 Lbs (as shown above) |
| Deck Size | 8-7/8 x 15-1/2" x 3/8" Clear Polycarbonate |
| Side Rails | 1/8" Brushed Aluminum |
| Model Range | Yamaha XT225 Serow 1993 - Present |
| Hauling Weight | 30 Lbs |
| Deck Screws | 10-24 x 5/8" Stainless Steel Button Head X6 |
| Mounting | Under Stock Handles Using All 4 Holes |
| Cinch Slots (Rails) | 1" x 1/4" 4 Provided |
| Cinch Slots (Deck) | 1-1/2" x 3/8" 3 Provided |
| Bag Suggestion* | Tour Master, Motor Bags or Equivalent (9" Wide) |
| Bag Attachment* | Nylon Zip Ties or Hook/Loop Straps |
| Kit Includes | Deck, 2 Rails and 6 Button Head Screws for Deck |
| Price | $99.95 US (Plus S/H) |
| * Bag, hook/loop straps and zip ties are not included and must be purchased seperately. | |
